Technical Guide: How to Create a HubSpot Public App with OAuth 2.0 and Token Refresh

At a Glance

HubSpot OAuth setup with token exchange, refresh, and best practices.

Quick Answer

To create a HubSpot public app with OAuth 2.0 you need a HubSpot developer account, a public app with Client ID/Secret, a secure HTTPS server, and an exact redirect URL. Use the authorization code flow to exchange the code for access/refresh tokens, then refresh tokens when the access token expires.

What is HubSpot OAuth 2.0?

HubSpot public apps authenticate with OAuth 2.0 Authorization Code flow.

After a user installs your app, HubSpot redirects with an authorization code.
You exchange this code for an access_token (short-lived) and a refresh_token (long-lived).
When the access token expires, you use the refresh token to request a new one.

What are the prerequisites?

Before you start, you need:

HubSpot Developer Account and Public App - Provides Client ID and Client Secret.
A public server with HTTPS domain - Required for redirect and callback routes.
Exact redirect URL - Must match app settings; HubSpot appends ?code=... to it.
Defined scopes - Control permissions requested during install.
Secure storage for tokens - Database or secrets manager.

Reference: HubSpot OAuth Guide

Step-by-Step: How do you set up a HubSpot Public App?

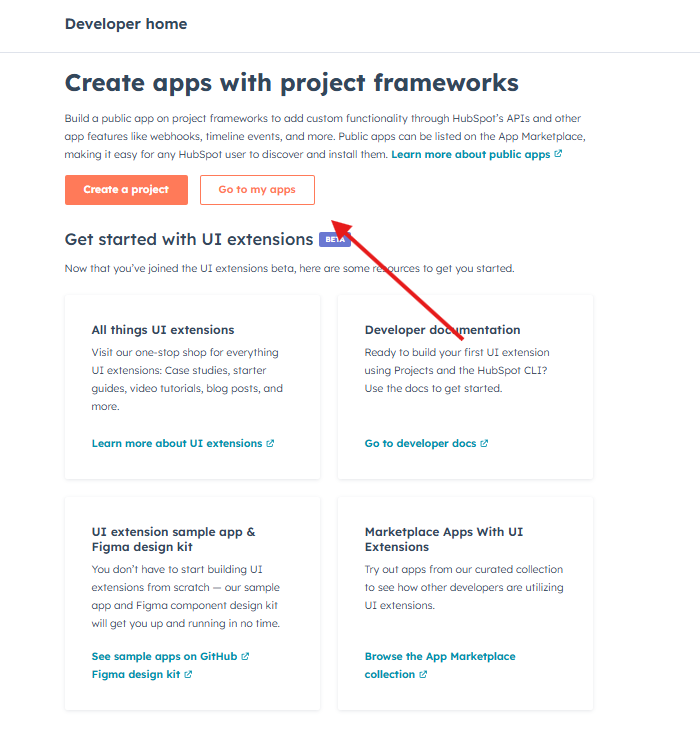

Step 1. Create the app in HubSpot Developer

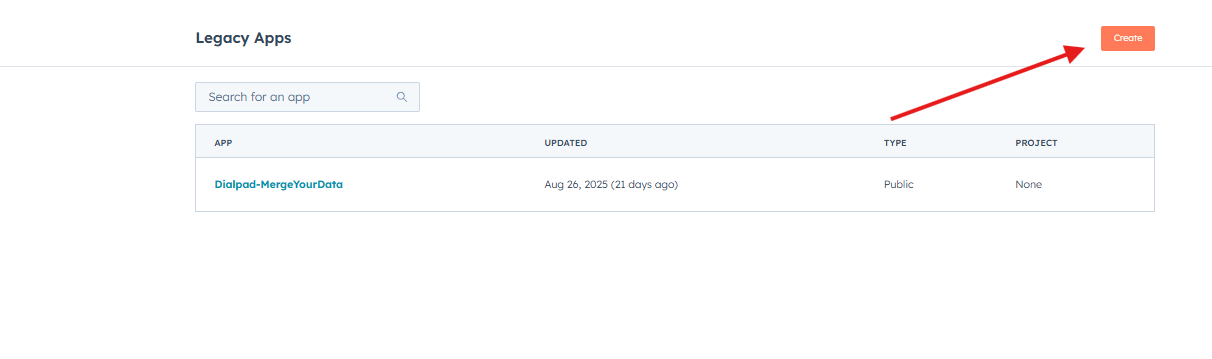

Go to your Developer Account → Public Apps → New App.

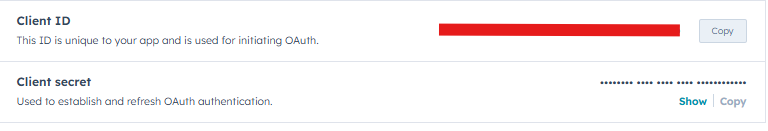

Copy your Client ID and Client Secret.

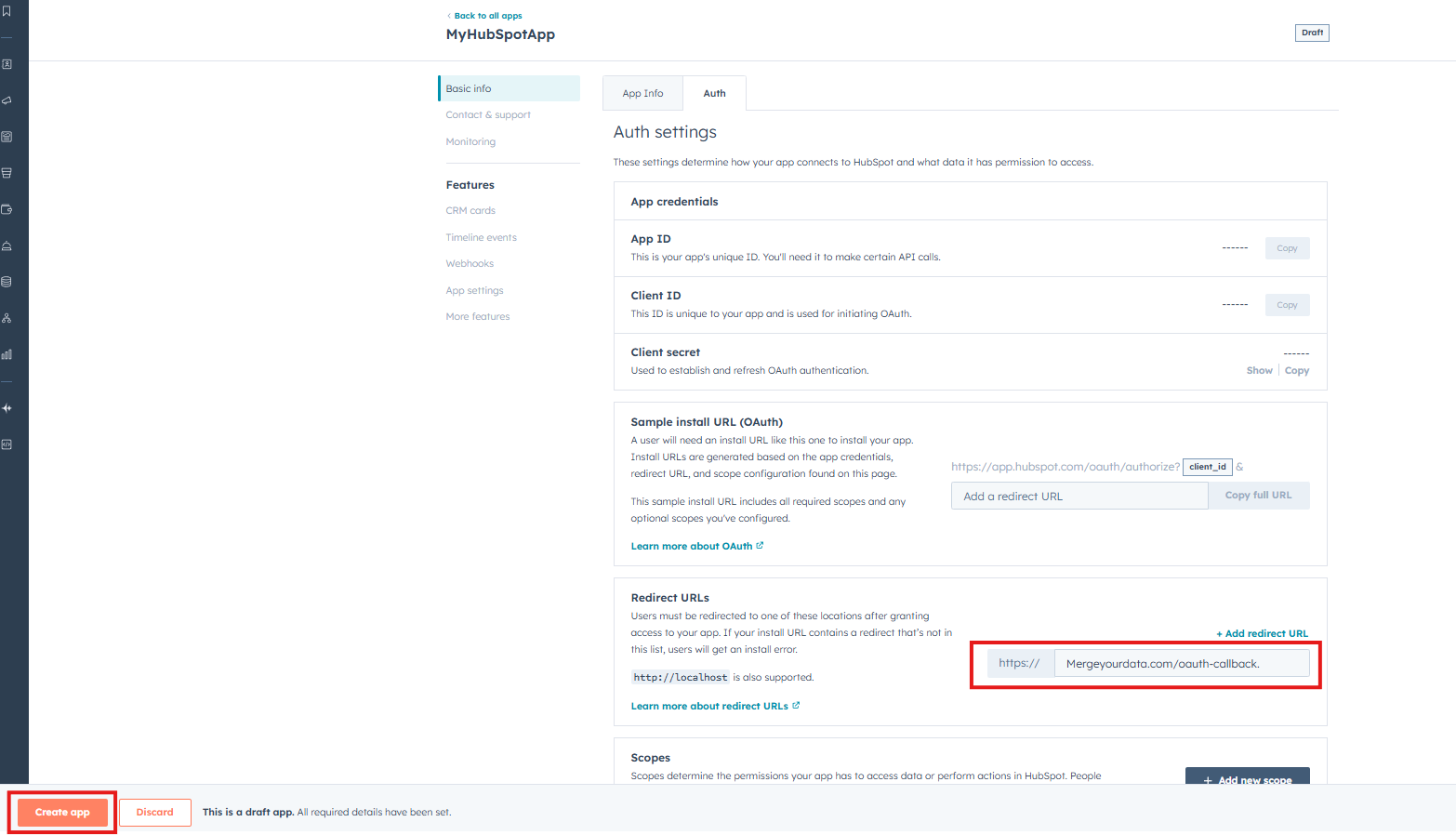

Add your Redirect URL (must match your server route).

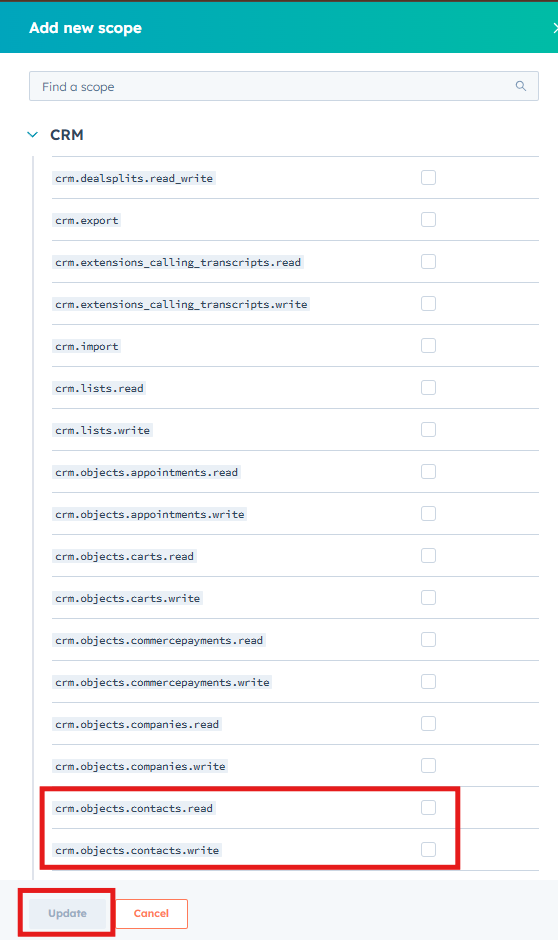

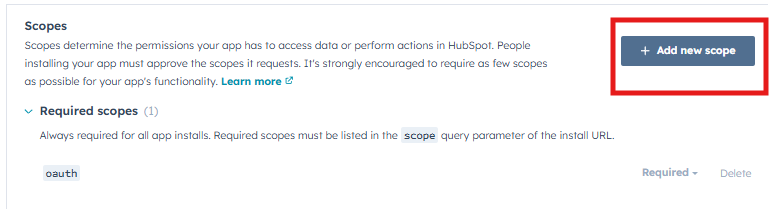

Choose required scopes. Build your install URL using client_id, redirect_uri, scope, and optional state.

Step 2. Deploy to a secure server

Deploy at https://yourapp.com.
Use HTTPS for /oauth-callback.
Keep Client Secret on the server only.

Step 3. Set environment variables

Set these variables on your server or in your hosting provider secrets panel.

HUBSPOT_CLIENT_ID=your_client_id HUBSPOT_CLIENT_SECRET=your_client_secret HUBSPOT_SCOPES="crm.objects.contacts.read crm.objects.contacts.write" HUBSPOT_REDIRECT_URI="https://yourapp.com/oauth-callback" HUBSPOT_AUTH_URL="https://app.hubspot.com/oauth/authorize" HUBSPOT_TOKEN_URL="https://api.hubapi.com/oauth/v1/token"

Step 4. Build the install URL

Send the user to HubSpot to install your app.

https://app.hubspot.com/oauth/authorize ?client_id=HUBSPOT_CLIENT_ID &redirect_uri=https%3A%2F%2Fyourapp.com%2Foauth-callback &scope=crm.objects.contacts.read%20crm.objects.contacts.write &state=opaqueCsrfOrAccountHint

After consent, HubSpot redirects with ?code=....

Step 5. Exchange authorization code for tokens

Use the code once to get the first access_token and refresh_token.

curl --request POST \ --url https://api.hubapi.com/oauth/v1/token \ --header 'Content-Type: application/x-www-form-urlencoded' \ --data 'grant_type=authorization_code' \ --data 'code=AUTH_CODE' \ --data 'redirect_uri=https://yourapp.com/oauth-callback' \ --data 'client_id=CLIENT_ID' \ --data 'client_secret=CLIENT_SECRET'

Response example

{
"access_token": "ACCESS_TOKEN",
"refresh_token": "REFRESH_TOKEN",
"expires_in": 1800,
"token_type": "bearer"
}

Store the refresh_token securely. The access token expires after expires_in seconds.

Step 6. Use the refresh token to get a new access token

When the access token expires, refresh it.

curl --request POST \ --url https://api.hubapi.com/oauth/v1/token \ --header 'Content-Type: application/x-www-form-urlencoded' \ --data 'grant_type=refresh_token' \ --data 'refresh_token=REFRESH_TOKEN' \ --data 'client_id=CLIENT_ID' \ --data 'client_secret=CLIENT_SECRET'

Replace REFRESH_TOKEN, CLIENT_ID, and CLIENT_Secret with your real values. This request returns a new access token. Continue using the same refresh token unless HubSpot issues a new one.

Step 7. Handle common errors

401 invalid_grant → Refresh token revoked or scopes changed. Reinstall app.
Insufficient scopes → Ensure all scopes are in the install URL.

How can this be implemented in n8n?

Node	Configuration	Purpose
HTTP Request — Exchange code	POST .../oauth/v1/token with body from section 3.5. Use credentials for CLIENT_ID and CLIENT_SECRET.	Gets initial access and refresh tokens.
Set — Save tokens	Map and persist access_token, refresh_token, expires_in, and your hub_id linkage.	Saves tokens.
HTTP Request — Refresh	POST .../oauth/v1/token with grant_type=refresh_token, refresh_token, client_id, client_secret.	Gets a new access token when expired.
Error handling branches	Handle non 2xx and timeouts.	Reliability.

What are best practices?

Always use HTTPS for redirect and callback routes.
Keep Client Secret server-side only.
Request minimal scopes to reduce user friction.
Store tokens with account linkage (map to Hub ID).
Allow for long token strings in storage fields.

Quick Reference (HubSpot OAuth)

Install URL = https://app.hubspot.com/oauth/authorize with client_id, redirect_uri, scope.
Token URL = https://api.hubapi.com/oauth/v1/token for both initial exchange and refresh.
Docs: HubSpot OAuth Guide

FAQ

Q: How long does a HubSpot access token last?
A: Typically 30 minutes (expires_in: 1800).

Q: Do refresh tokens expire?
A: They can be revoked if scopes change or the app is uninstalled. Otherwise, they are long-lived.

Q: Can I use one refresh token for multiple accounts?
A: No. Each HubSpot account generates a unique refresh token.
